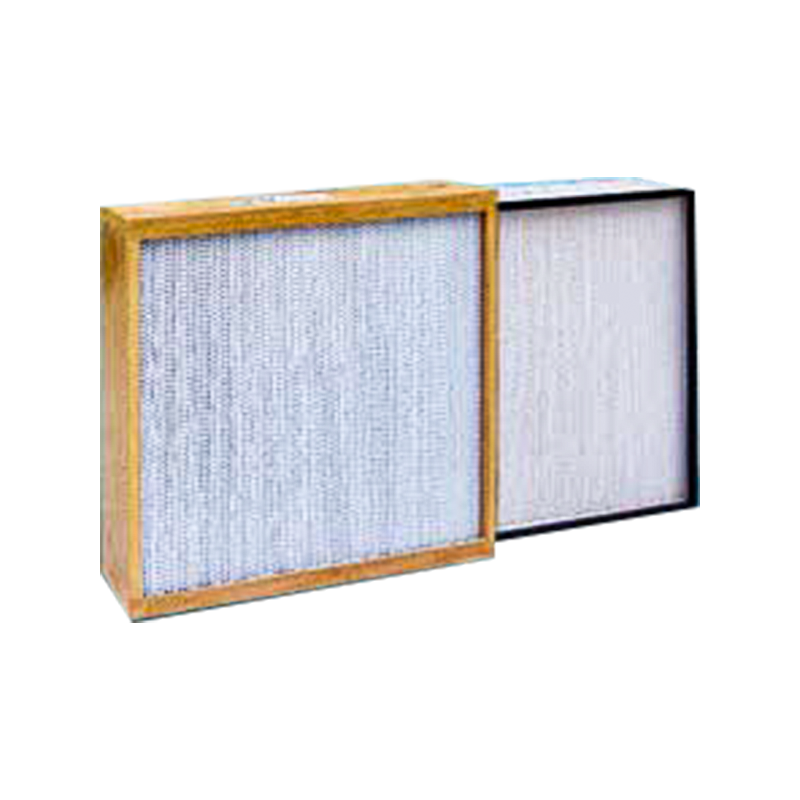

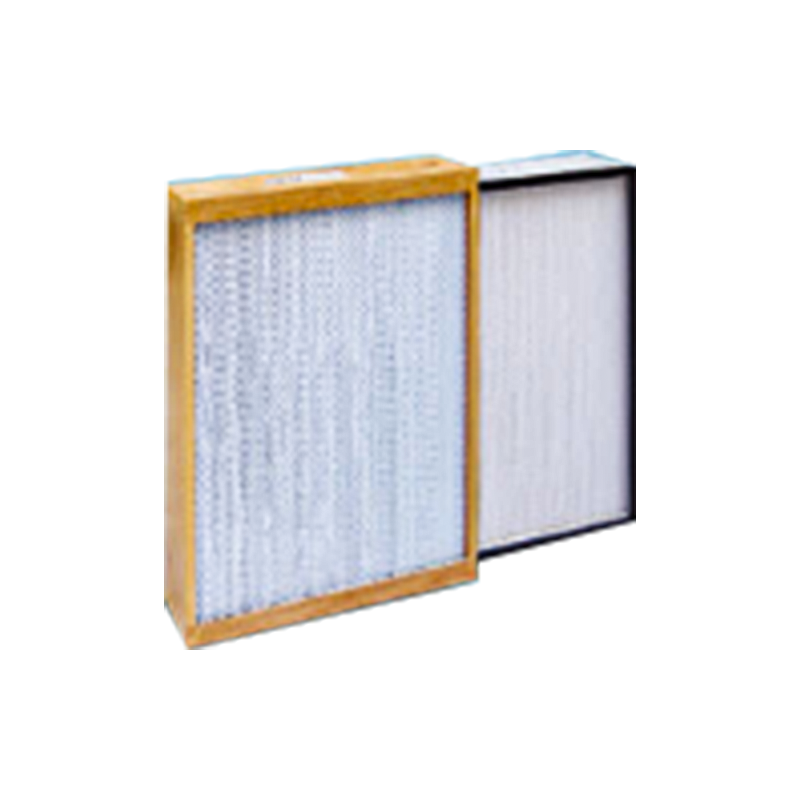

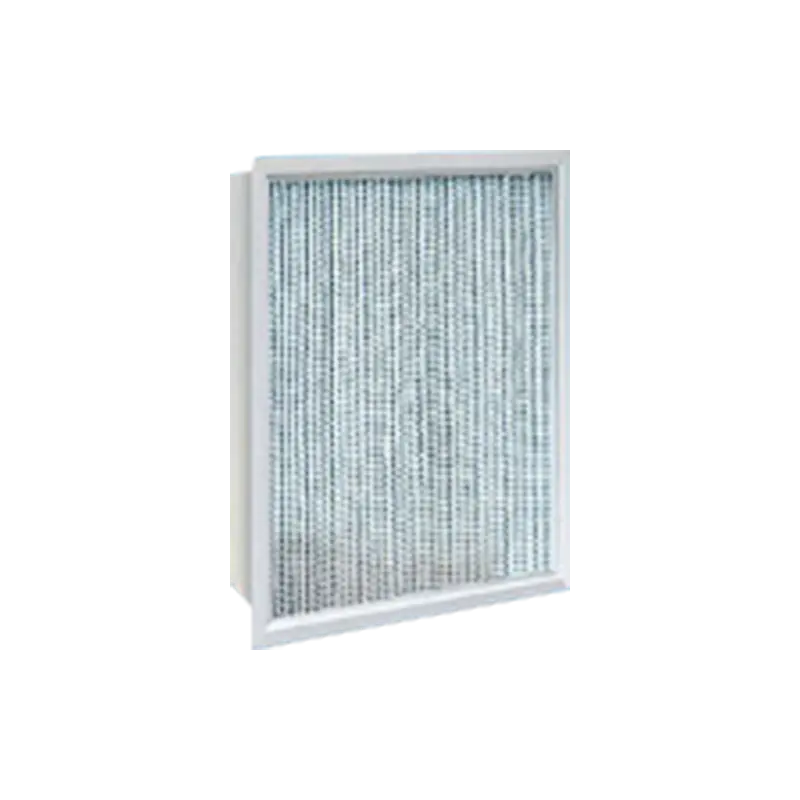

High Efficiency Air Filter with Partition
Air Filter

High Efficiency Air Filter with Partition

Our company specializes in selling high-efficiency air filters with partitions. The outer frame is made of high-quality galvanized frame or aluminum alloy frame. The filter material of the high-efficiency air filter with partitions is made of glass fiber or synthetic fiber. The high-efficiency air filters with partitions we provide are all produced using materials that meet international standards. Suitable for various local purification equipment and clean rooms in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automobiles, etc.

  • High Efficiency Air Filter with Partition
  • High Efficiency Air Filter with Partition
Contact Us
PREV：High Temperature Resistant and Efficient Air Filter
NEXT：Combination High-Efficiency Air Filter
Advantage

Material selection:
The outer frame is made of high-quality aluminum profiles or wooden frames, and the filter material is made of extremely fine glass fiber. The partition board is divided into paper partition board and aluminum foil partition board. Materials can be selected according to customer requirements to customize specifications.

Product features:
1. Large dust holding capacity.
2. Low resistance and high air volume.
3. The product is easy to install.
4. Suitable for various local purification equipment and clean rooms in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automobiles, etc.


Composition materials and operating conditions:

Frame material Aluminum profiles
Seals Polyurethane glue
Separators Laminated paper or aluminum film
Filter media Fiberglass filter paper
Use the highest temperature 80℃
Use the highest humidity 80%
Seals Ethyl acetate


Model size and other parameters:

Model Dimensions
(mm)		 Rated air volume
(m³/h)		 Initial Resistance
(Pa)		 Efficiency (colorimetry)
(%)		 Dust holding capacity
(g)		 Weight
(Kg)
ZGB-4MA-C 305×305×220 400  ≤220 ≥99.99 300  ≈3
ZGB-4MB-C 320×320×220 400  ≤220 ≥99.99 350  ≈3.4
ZGB-5MA-C 350×350×220 500  ≤220 ≥99.99 400  ≈4
ZGB-5SB-C 305×610×150 500  ≤220 ≥99.99 400  ≈3.2
ZGB-10SA-C 600×600×150 1000  ≤220 ≥99.99 600  ≈6.2
ZGB -10MC-C 484×484×220 1000  ≤220 ≥99.99 600  ≈6.5
ZGB-10SB-C 610×610×150 1000  ≤220 ≥99.99 600  ≈7.7
ZGB-13SA-C 820×600×150 1300  ≤220 ≥99.99 750  ≈8.5
ZGB-13SB-C 720×760×150 1300  ≤220 ≥99.99 800  ≈9.5
ZGB-15MA-C 726×484×220 1500  ≤220 ≥99.99 750  ≈11.5
ZGB-15SB-C 915×610×150 1500  ≤220 ≥99.99 800  ≈10
ZGB-15MC-C 630×630×220 1500  ≤220 ≥99.99 900  ≈13
ZGB-20MA-C 968×484×220 2000  ≤220 ≥99.99 1200  ≈15
ZGB-20SB-C 1220×610×150 2000  ≤220 ≥99.99 1200  ≈12.5
ZGB-23MA-C 945×630×220 2300  ≤220 ≥99.99 1400  ≈19
ZGB-30MA-C 1260×630×220 3000  ≤220 ≥99.99 1800  ≈23
