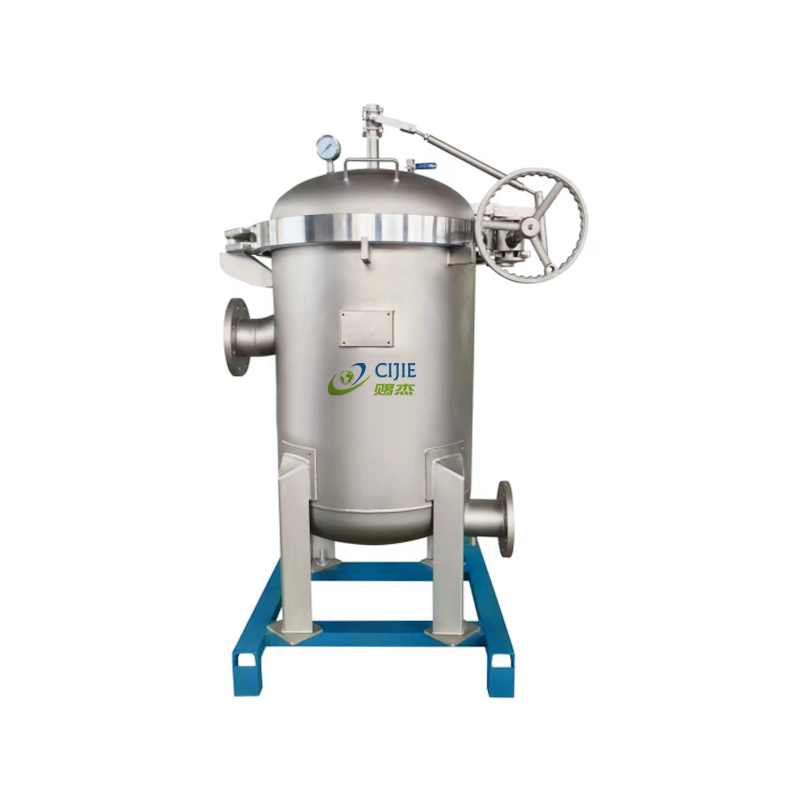

CJMF-K Quick Opening Multi-Bag Filter
Bag Filter

CJMF-K Quick Opening Multi-Bag Filter

CJMF multi-bag filter is suitable for use in high-flow situations. The number of filter bags can be combined from 2 to 36 bags, and the flow rate can range from 50m ³/h to 1000m ³/h. According to the structure, it can be divided into quick opening multi-bag filter (CJMF-K) and ordinary multi-bag filter (CJMF-O).

The CJMF-K quick-opening multi-bag filter adopts a clamp-locking seal, which is easy and fast to operate. It only takes 30 seconds to open and close once, making it particularly suitable for occasions where filter bags are frequently replaced, improving efficiency and reducing manual operation time. There are 3 to 12 bags to choose from, and the flow rate ranges from 50m ³/h to 480m ³/h.

  • CJMF-K Quick Opening Multi-Bag Filter
Contact Us
PREV：CJMF-O Ordinary Multi-Bag Filter
NEXT：CJBS Concave Cover Single Bag Filter
Advantage

Dimension


How to Open the Top Cover

Step 1: Filter bag change necessary, opening the safety, interlock ensures simultaneous pressure relief.

Step 2: Using a handwheel to rotate the screw, Until the hoop is fully opened.

Step 3: Gently open the top cover.

Step 4: Replace the filter bag inside.

Step 5: Closing of the cover.

Step 6: Rotate the hand wheel again to close the top cover until it stops rotating.

Step 7: Close the safety interlock device.



Product Features

● Adopting a clamp screw form for sealing, making it easy and fast to open or close the top cover, the entire process only takes 30 seconds;

● Using a spring-assisted weight balancing mechanism, the top cover is as light as nothing, and can be opened or closed with just a gentle push by hand;

● The design of side in and bottom out ensures that the liquid can be completely discharged.


Application Scope

● Applicable industries: petrochemicals, fine chemicals, water treatment, pharmaceuticals, automotive coatings, food and beverage, new energy manufacturing, coatings, electronics, etc;

● Suitable for liquid filtration, it can remove mechanical impurities from various liquids;

● Suitable for occasions where filter bags are frequently replaced.


Technical Parameter Table

Model

CJMF-K03

CJMF-K04

CJMF-K06

CJMF-K08

CJMF-K10

CJMF-K12

Number of filter bags

3

4

6

8

10

12

Filter bag specifications

No. 1 or No. 2

Filtration area(㎡)

1.5

2

3

4

5

6

Maximum flow rate(m³/h)

108

144

216

288

360

432

Design Pressure(Mpa)

0~0.8

Design Temperature (°C)

0~260

Filtration Accuracy (um)

1~1000

Surface treatment

Shot blasting, wire drawing, polishing

About Cijie

Rugao Cijie Environmental Technology Co.,Ltd. is CJMF-K Quick Opening Multi-Bag Filter supplier and CJMF-K Quick Opening Multi-Bag Filter exporter. We are also a filtration company in China.  It focuses on precision filtration, self-cleaning filtration, and sewage treatment equipment, and is committed to providing comprehensive professional filtration support for customers.  The core technology team of Cijie has rich industry filtration experience, strong design and research ability, comprehensive use of comprehensive filtration products, and integration of global Into filter technology and product resources, to provide a one-stop solution.

With advanced technical strength and efficient service, we have established close cooperation with several well-known international brands, with a strong competitive advantage, to provide reliable protection for customer cooperation.

Shanghai Cijie filtration products are widely used in the petrochemical industry, sewage treatment, fine chemical industry, pharmacy, food and beverage, automobile industry, coating, papermaking, and other fields.

Shanghai Cijie Environmental Technology Co., Ltd. takes the principle of "science and technology leading, quality excellence" as the principle, and "serves users and returns to nature" as its purpose. It provides high-quality services for customers. The company has independent import and export operation rights and facilitates customer service at home and abroad. We also offer wholesale CJMF-K Quick Opening Multi-Bag Filter
