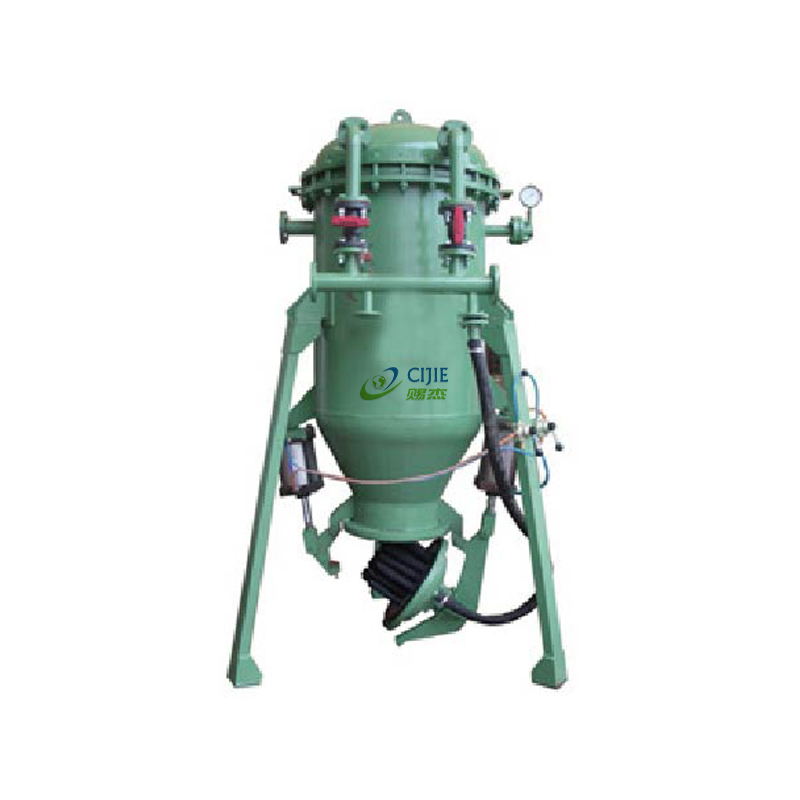

CJ-MLF PE/PA Microporous Precision Filter

Product characteristics
● As a filter medium, PEPA microporous tube has high filtration precision, can be used repeatedly, and has a long service life.
● Strong acid and alkaline resistance.
● Continuous filtration under closed conditions has the advantages of high safety, convenient operation, low labor intensity, and small floor area.
● According to the requirements, the slag discharge port can be designed as manual type, butterfly valve type, ball valve type, pneumatic quick open type, and other forms.
● The bottom layer of the filter is equipped with a microporous tube, which makes the filtered residue dry, and the filtrate is filtered at one time, which is very good for intermittent filtration and filtration in which the upper and lower batches cannot be mixed.
● The raw materials can be stirred, washed, aerated, and filtered in the filter at one time, and the ideal effect can be achieved.
● According to the specific situation, the outer layer can be added with sandwich insulation.
● PE temperature resistance ≤ 90 ℃, PA temperature resistance < 110 ℃.
● PE / PA filter tube can resist acid, alkali, aldehyde, aliphatic hydrocarbon, and radioactive radiation; it has excellent chemical properties and organic solvent resistance; it can resist organic solvents such as ester ketone and ether below 80 '℃: it has good impact strength and is not easy to be damaged; its specific gravity is light and easy to install.

Working Principle

The material is pumped into the filter through the PEPA microporous tube, and the clean liquid flows out of the container and is discharged into the clean tank. After the filtration of the material is completed, the air source(nitrogen or compressed air)is introduced for pressure filtration. The liquid in the container is filtered. After that, the filter cake is blown dry, and then the bottom valve is opened for unloading. The filter cake is completely blown down by gas reverse-blowing. Close the bottom valve. Prepare for the next filter.

Scope of Application
● Each row of activated carbon filtration, catalyst recovery;
● Precision filtration of Chinese herbal medicine juice, Precision filtration of oral medicine, injection medicine, tonic liquid, medicinal wine, etc;
● Precision filtration of syrup for pharmaceutical and food use;
● Precise filtration of soy sauce, vinegar, etc;
● Precision filtration of fruit juice (apple juice, strawberry juice, hawthorn juice, etc.); iron mud filtration in pharmaceutical and chemical production.

Technical Parameter
